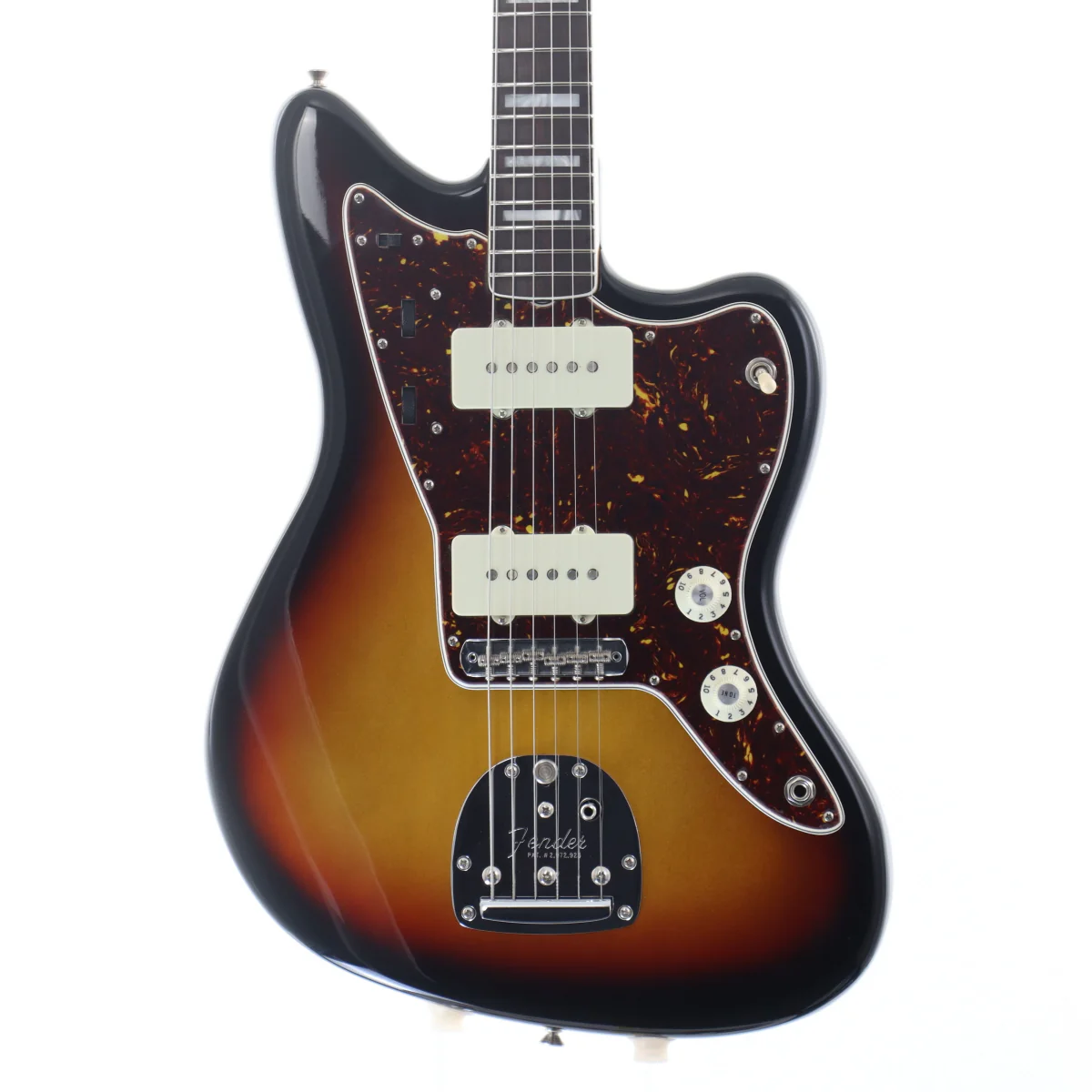

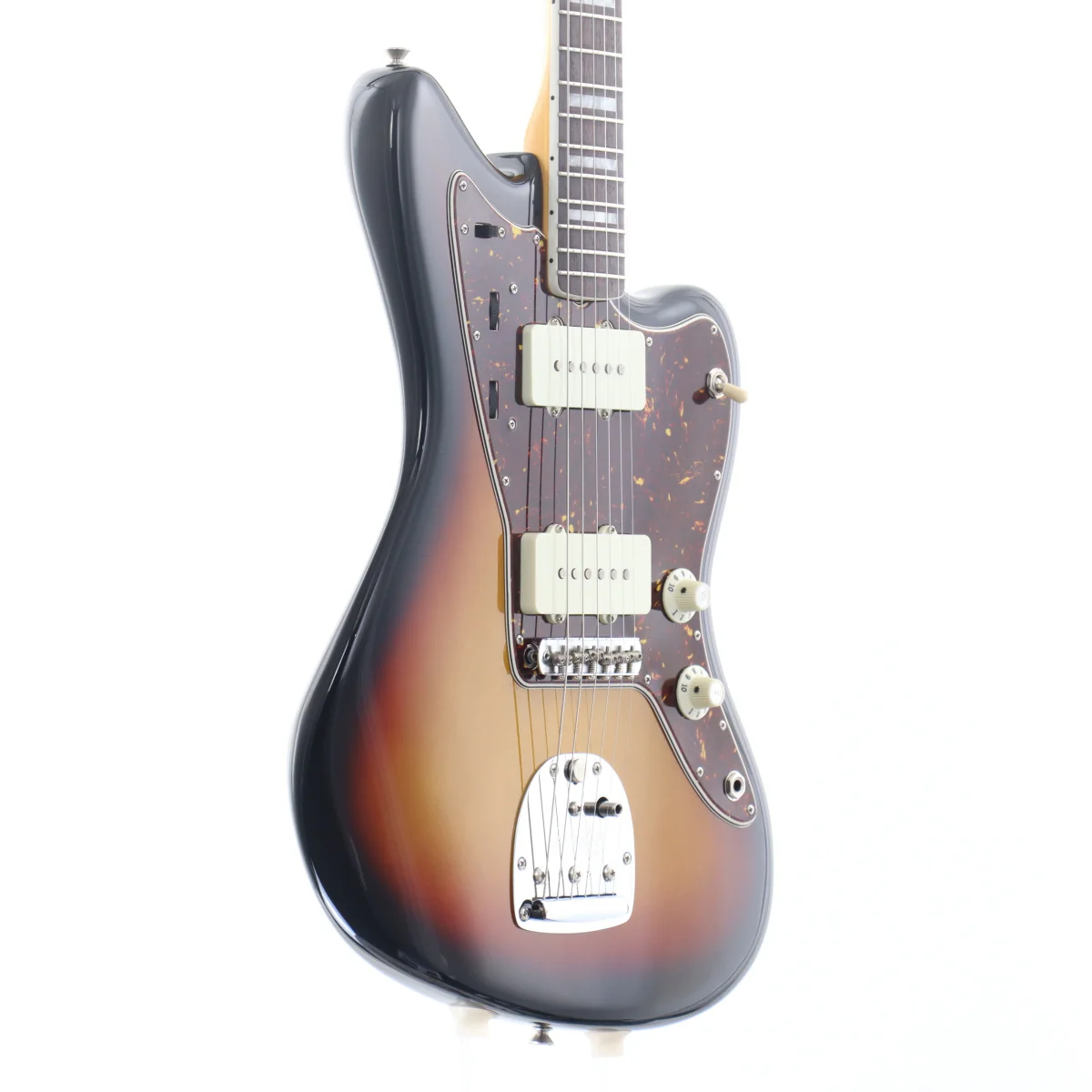

[SN V2201806] USED Fender / American Vintage II 1966 Jazzmaster 3-Color Sunburst [20]
Featuring a 1966 āCā-shaped maple neck, the American Vintage II 1966 Jazzmaster is equipped with a 7.25-inch radius round-lam rosewood fingerboard with 21 vintage tall frets, evoking the playability of an instrument from that eraāas if youāve been transported back to 1966.

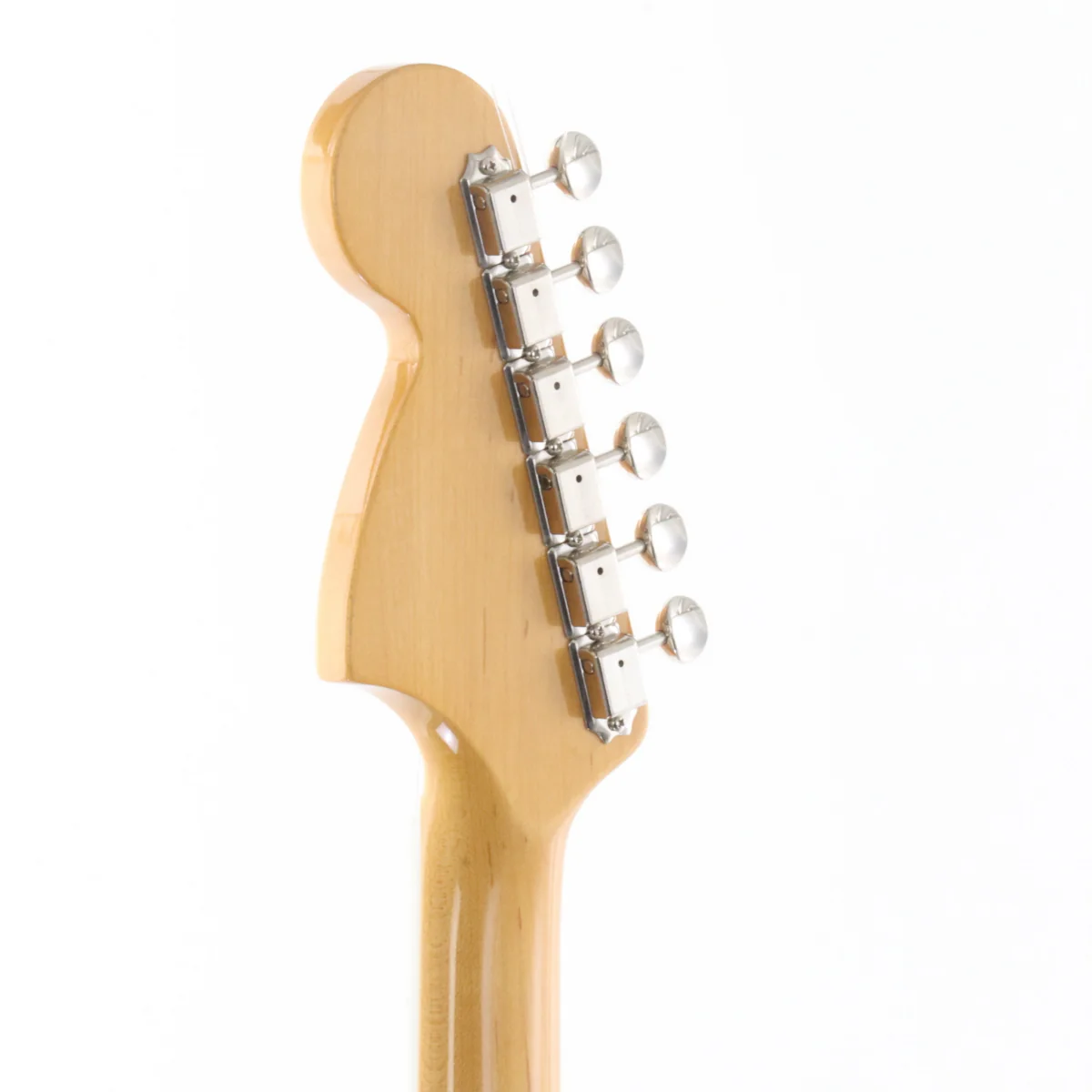

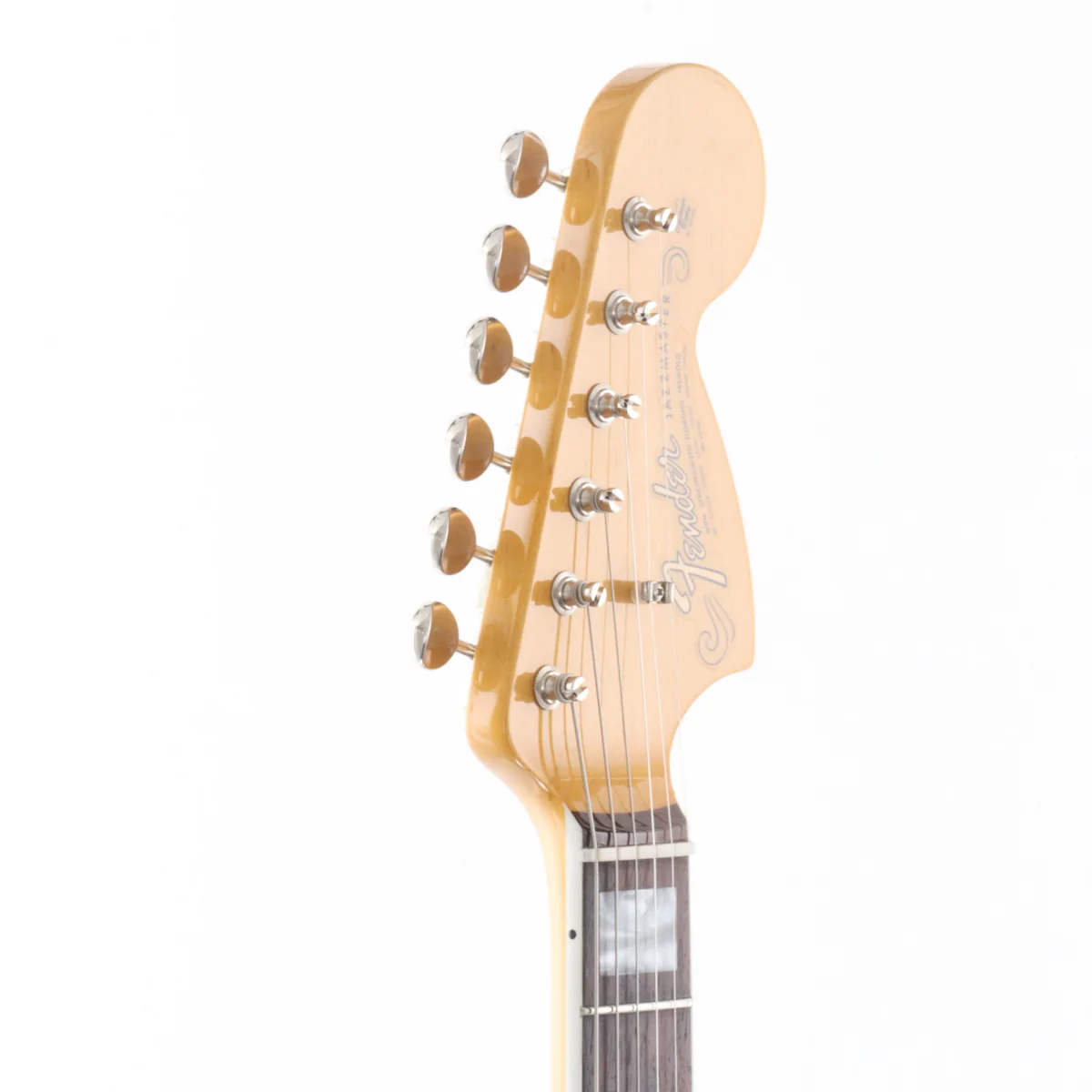

With white neck binding, pearl block inlays, Fender Deluxe tuning machines, and a matching headstock on custom-color models, this guitar embodies the characteristics of a 1966 Jazzmaster.
The patented floating tremolo, adjustable bridge with threaded saddles, and Pure Vintage ā66 Jazzmaster pickups wired in a rhythm/lead configuration deliver classic tone and an authentic Fender feel.
The parts show some discoloration and minor rust, and the guitar has fine scratches and small dents overall.
Condition Grade: A: Excellent Condition
Serial Number: V2201806
Year of Manufacture: 2022
Country of Manufacture: USA
Case: Original hard case
Accessories: Tremolo arm, bridge cover
Weight: 3.68 kg
Truss Rod: No issues; checked up to 60 degrees to the left and right with no problems
Remaining Fret Life: Within normal range; fret height is sufficient for playing
String Height (Low String Side): 2.0 mm at the 12th fret
String action (treble side): 1.5 mm at the 12th fret
Nut width: 42.3 mm
Neck thickness near the 1st fret: 21.0 mm
Neck thickness near the 12th fret: 23.7 mm
Scale: 648 mm (25.5")
RADIUS: 184 mm (7.25")
Strings at Setup: ERNIE BALL 2223 / .009-.042 set
Repairs and Maintenance: Cleaning, string replacement, truss rod adjustment, octave adjustment, action adjustment, and leveling
* As this is a used item, there may be scratches, dents, and other imperfections that are not clearly visible in the photos or not listed here. Please be aware of this in advance.
* Any specifications listed regarding the truss rod, remaining fret life, string height, etc., were measured by our staff during setup and are subject to change due to environmental factors such as climate and humidity.
These measurements are intended as a reference at the time of purchase; we cannot guarantee that the measurements will be identical when the item arrives at your location.
* This is a one-of-a-kind item that is listed simultaneously on multiple marketplaces, including our in-store display. We strive to promptly remove product listings upon sale, but updates may not always be in real time.
We sincerely apologize in the unlikely event that the item is sold out after you place your order, and we ask for your understanding.
